| Max thrust | 1500g per motor |
|---|---|
| Lightweight | 72.3g per motor |

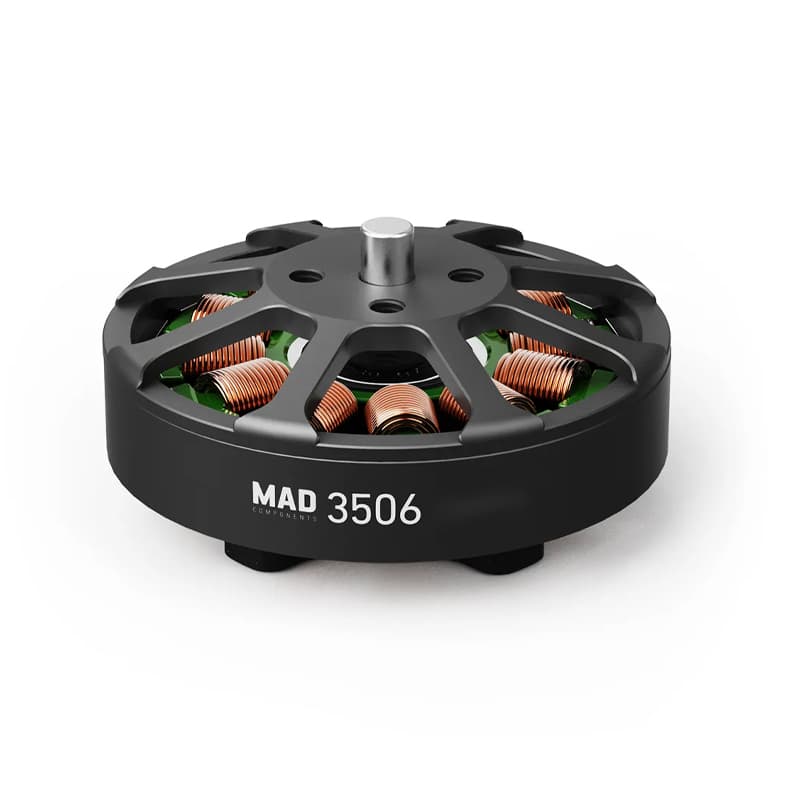

| Item Type: | Drone motor |
| Model No: | 3506 |
| Motor KV (RPM/V): | 650 |
| Motor Type: | EEE brushless drone motor |
| Compatible LiPO Batteries: | 4S LiPo |
| No-load current (A) | 0.5A @ 16V |
| Max Current (A) | 17.4 |
| Max Power Output (W) | 270 |
| Torque: | 0.24 Nm |
| Max Thrust | 1.5 kg |
| Shaft Diameter (mm): | 4 |
| Bearing | 694ZZ*2 |
| Mounting Hole(mm) | D:12 M3×4 |
| Motor Size (mm): | D:42.5 × 23.8 |
| Motor Outer Diameter(mm) | 42.5 |
| Weight (g): | 72.3(Each) |
| Shipping Weight | 0.303 kg |
| Shipping Dimensions | 11 × 11 × 6 cm |
