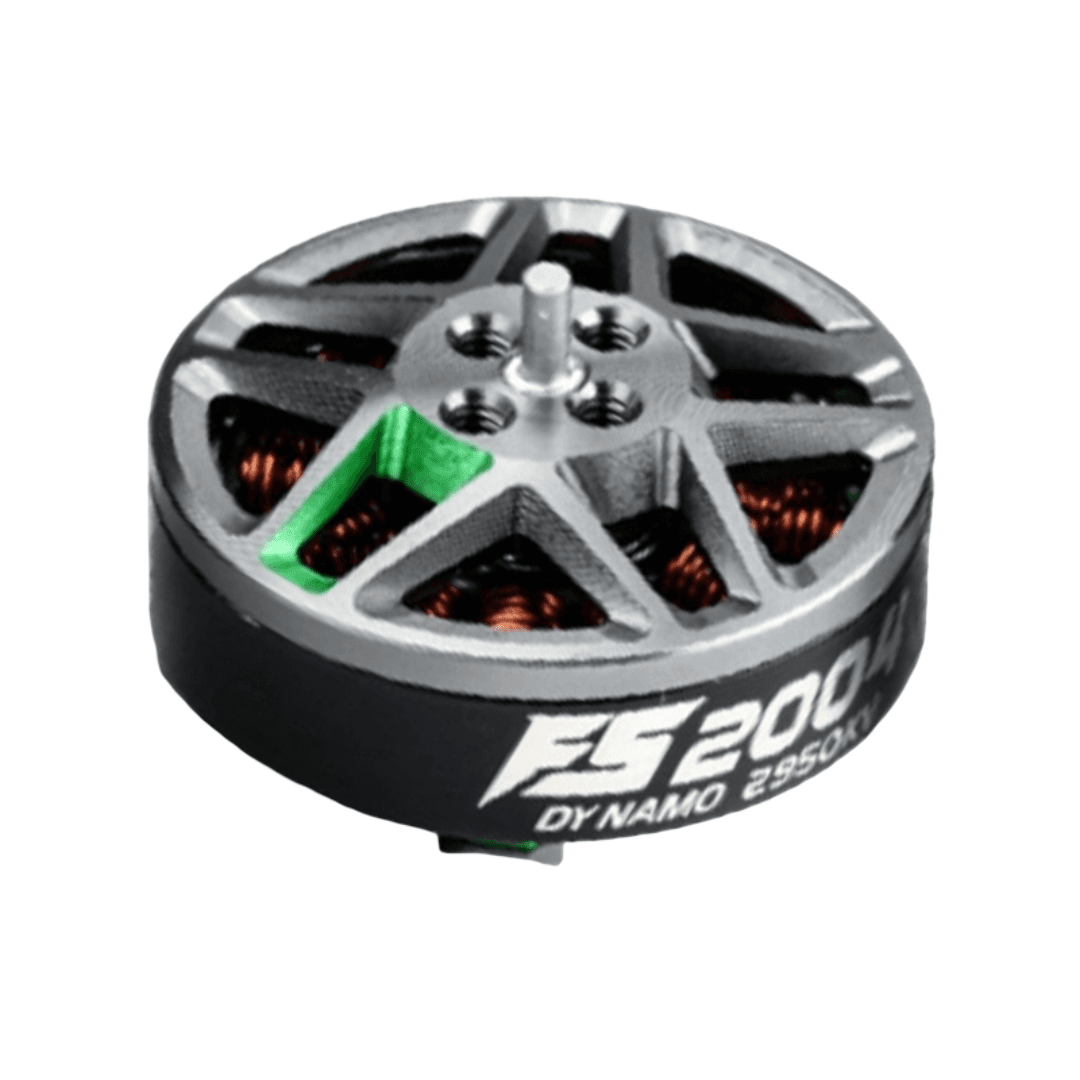

| Motor Model | Dynamo FS2004 |
|---|---|
| Motor Size | D:24.3 × 17.25 mm |
| Shaft Diameter | IN: 1.5 mm |
| Propeller Mounting Holes | D:5 M2X2 D:6 M2X2 |
| Motor Number of slots | 12N14P |
| Motor Balance | D:12 M2×4 |
| Model Name: | Dynamo FS2004 |
| Shaft Diameter (mm): | 1.5 |
| Color | Green |
| Motor KV (RPM/V): | 3500 |
| Motor Type: | Brushless Motor |
| Compatible LiPO Batteries: | 4S |
| Framework | 12N14P |
| Max. Efficiency Current (A) | 7–9 |
| Max. Power (W) | 150–200 |
| Maximum Thrust (gm) | 450–600 |
| No-load current (A) | 0.5 |
| No-Load Current (mA) | 500 |
| Outer Diameter (mm): | 24.3 |
| Weight (g): | 17 |
| Shipping Weight | 0.028 kg |
| Shipping Dimensions | 5 × 5 × 4 cm |
