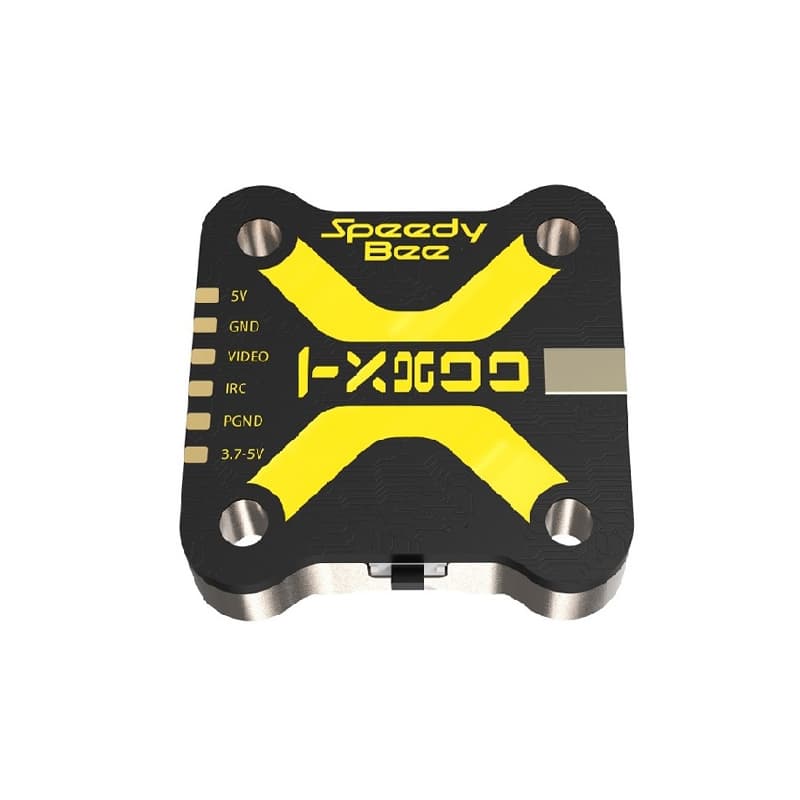

| Model | TX800 |
|---|---|
| Frequency Channel | 5.8GHz 48CH |
| Video input impedance | 75 Ohm |
| Antenna Connector | MMCX |
| Item Type: | Transmitter |
| Frequency (GHz): | 5.8 |
| Output Power (W): | PIT/25mW/200mW/400mW/800mW |
| Working Current (mA) | 5V@250~750mA |
| Input Voltage (V): | 3.7-5V |
| Video input impedance(ohm) | 75 |
| Antenna Connector Type | MMCX |
| Weight (g): | 5.6 (without antenna) |
| Size (mm): | 28mm*28mm@20*20 |
| Mounting holes | M4 holes on the PCB; M3 holes on the metal heat sink |
| Shipping Weight | 0.017 kg |
| Shipping Dimensions | 6.5 × 5 × 2.3 cm |
