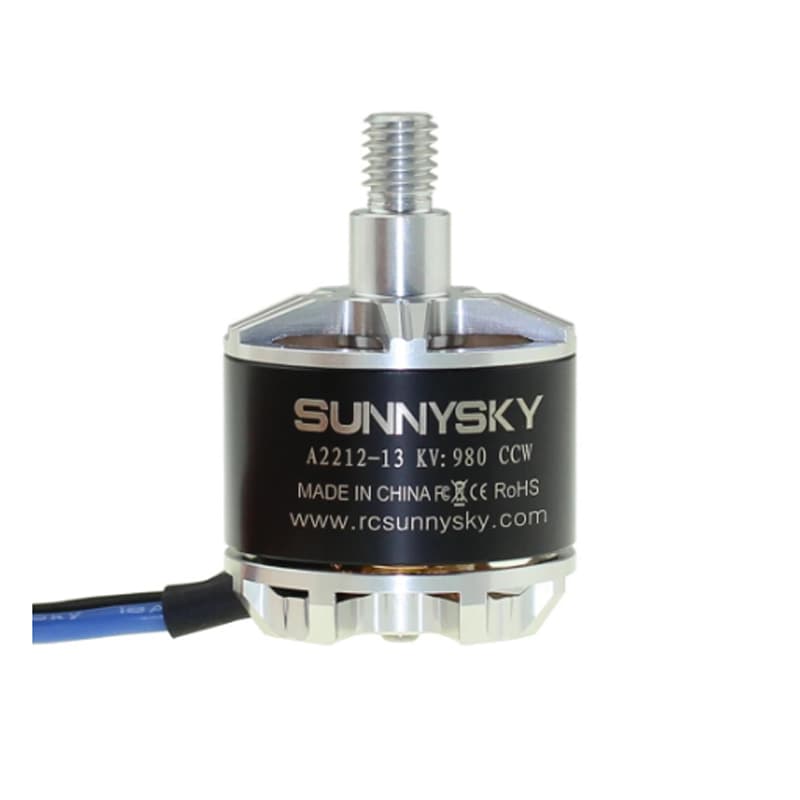

Sunny Sky A2212 980KV Brushless Motors - CCW

Stator Diameter: 22mm Stator Thickness: 12mm No. of Stator Arms: 12 No. of Rotor Poles: 14 Motor Kv: 980 No-Load Current (A/10V): 0.7A Recommended Prop(inch): 9450

Specifications

Stator Diameter	22mm
Stator Thickness	12mm
No. of Stator Arms	12
No. of Rotor Poles	14
Motor Kv	980
No-Load Current (A/10V)	0.7A
Recommended Prop(inch)	9450
Motor KV (RPM/V):	980
Motor Type:	Brushless Motor
No. of Stator Poles	14
Continuous Current (A):	20A/30s
Max. Power (W)	330W
Motor Weight (g)	56
Outer Diameter (mm):	27.5
Motor Body Length (mm):	40
Required ESC (A)	20
GTIN	7501768335838
Internal Resistance(mOhm)	123mΩ
Shipping Weight	0.067 kg
Shipping Dimensions	8 × 5 × 4 cm
