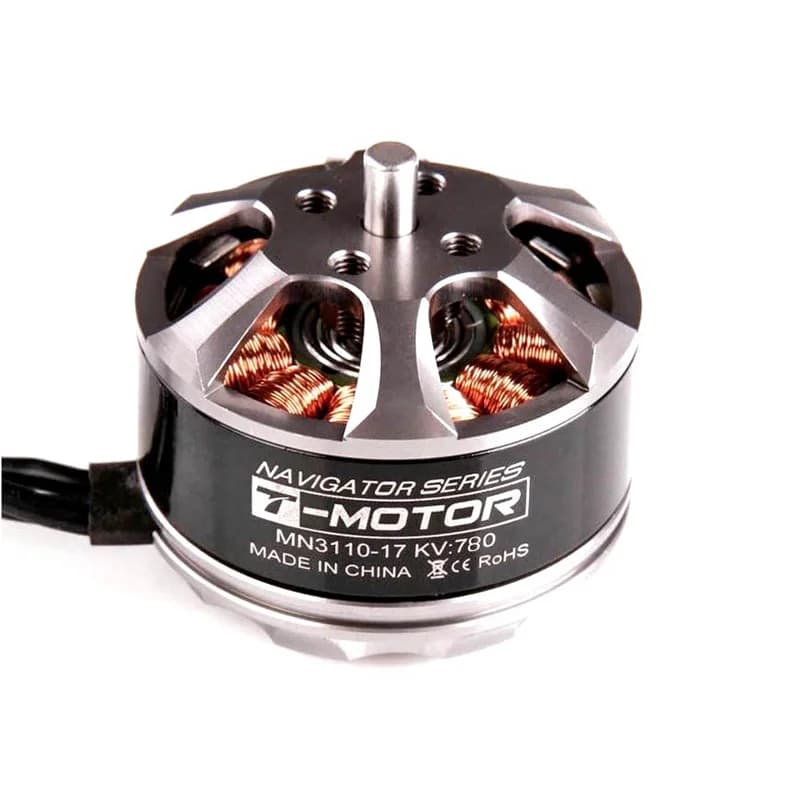

| Model | MN3110 |
|---|---|
| Rated KV | 780 |
| Configuration | 12N14P |
| ldle current(10)@10v(A) | 0.4A |
| Motor KV (RPM/V): | 780 |
| Compatible LiPO Batteries: | 3S to 4S |
| Idle Current(A) | @10v(A)0.4A |
| Configuration: | 12N14P |
| Continuous Current (A): | 180S 26A |
| Max. Power (W) | 180S481W |
| Max. Efficiency Current (A) | 3-10A |
| Stator Diameter | 31mm |
| Shaft Diameter (mm): | 4mm |
| Motor Size (mm/inch) | Φ37.7×28.5mm |
| Weight (g): | 80g |
| Internal Resistance(mOhm) | 71mΩ |
| Shipping Weight | 0.18 kg |
| Shipping Dimensions | 6 × 6 × 6 cm |
