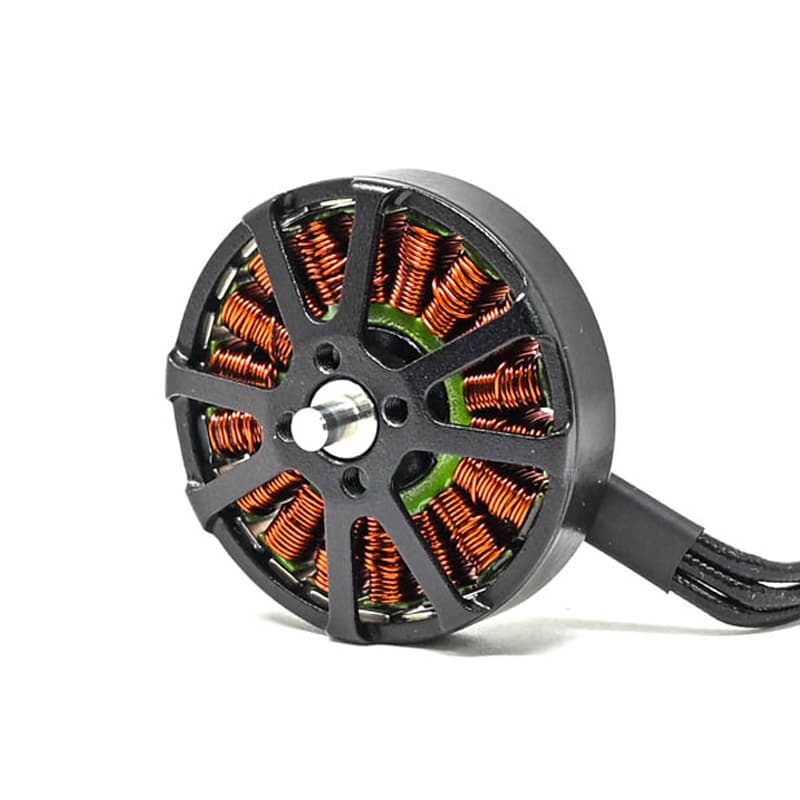

Vector 4006 -380Kv Motor

Kv: 380 RPM/V Kt: 0.033 Nm/A @ 4826 rpm Max Continuous Current: 9A (180 s) Max Continuous Power: 233W (180 s) Voltage Range: 24V (6S LiHV) Weight: 67g

Specifications

Kv	380 RPM/V
Kt	0.033 Nm/A @ 4826 rpm
Max Continuous Current	9A (180 s)
Max Continuous Power	233W (180 s)
Voltage Range	24V (6S LiHV)
Weight	67g
Motor KV (RPM/V):	380
Torque Constant KT	0.033 Nm/A @ 4826 rpm
Continuous Current (A):	9A (180 s)
Max. Power (W)	233W (180 s)
Voltage Rating (V):	24 V (6S LiHV)
No. of Stator Poles	18S (18S24P)
No. of Bearings	Dual, 619/4-2RS (SKF)
Output Shaft Diameter (mm)	ø4
Motor diameter (mm)	ø44.6
Motor Length (mm):	20
Motor Weight (g)	67
Mounting holes	90 deg: 4XM3 ↧2.5 mm ø25 mm
Compatible Prop (inch):	16
Shipping Weight	0.85 kg
Shipping Dimensions	7 × 7 × 7 cm
