Introduction

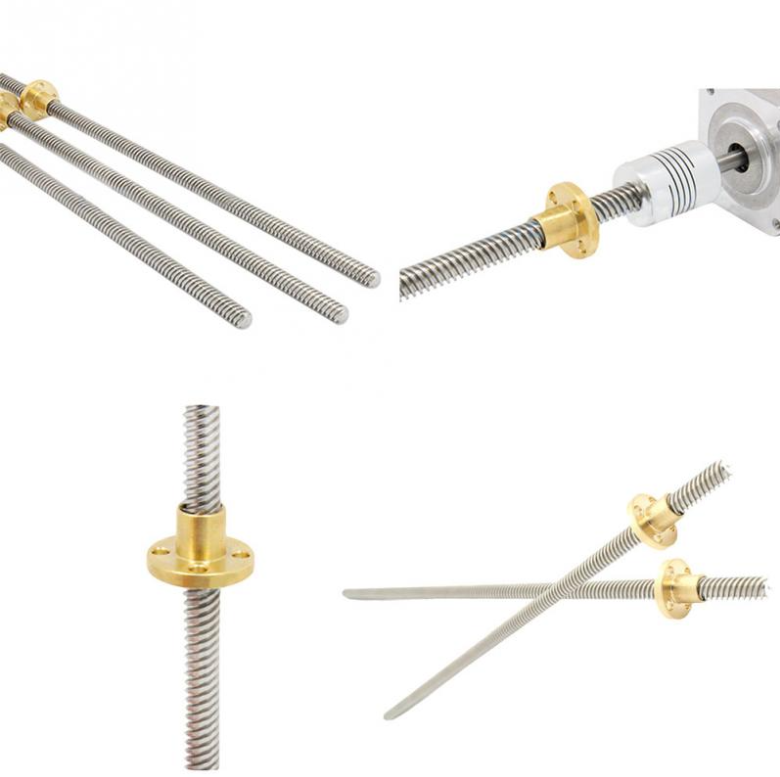

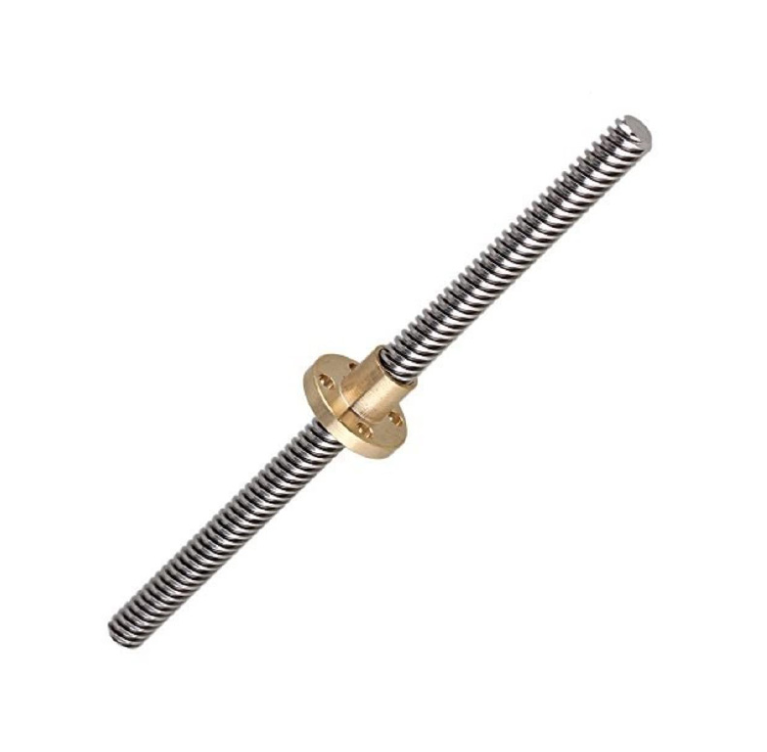

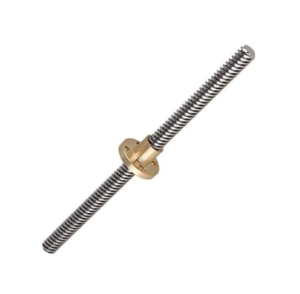

The 500mm Trapezoidal Lead Screw 8mm 2mm Pitch with copper nut is a high-precision mechanical component designed for linear motion systems in 3D printers, CNC machines, robotics platforms, and industrial automation systems. This lead screw is manufactured from high-quality stainless steel and paired with a durable copper nut to deliver smooth movement, low friction, and long operational life.
At LOFTY AGROTECH, we provide premium engineering components that support innovation in robotics, automation, and manufacturing. The 500mm Trapezoidal Lead Screw 8mm 2mm Pitch is carefully engineered to meet the demands of engineers, DIY makers, machine designers, and industrial developers who require reliable and precise motion control components.
Linear motion systems are essential in modern machinery. Whether you are building a 3D printer, CNC engraving machine, automated robotic system, or laboratory equipment, a high-quality lead screw is a critical element for achieving accurate motion and consistent performance.
This lead screw features a 4-start trapezoidal thread design, ensuring smooth and efficient motion transmission. The combination of stainless steel and copper materials enhances durability, reduces wear, and increases the lifespan of the component.
Understanding the Trapezoidal Lead Screw
A Trapezoidal Lead Screw is a mechanical screw designed to convert rotational motion into linear motion. Unlike standard threaded rods, trapezoidal screws use a T-shaped thread profile that offers improved load capacity and greater durability.
The 500mm Trapezoidal Lead Screw 8mm 2mm Pitch is designed specifically for motion control applications where precise positioning and smooth movement are required.
The trapezoidal thread design provides several advantages:
• High mechanical strength
• Reduced friction between the screw and nut
• Improved load distribution
• Increased durability
• Smooth and consistent linear motion
Because of these characteristics, trapezoidal lead screws are widely used in 3D printers, CNC routers, milling machines, robotic actuators, and automated industrial equipment.
The precision of the screw allows machines to move accurately along linear axes, which is critical for manufacturing and robotics applications.
High-Quality Material Construction
The 500mm Trapezoidal Lead Screw 8mm 2mm Pitch is built using premium-grade stainless steel, which offers excellent strength and corrosion resistance. Stainless steel is widely used in mechanical components due to its ability to withstand mechanical stress, environmental exposure, and long-term usage.
The lead screw is paired with a copper (brass) nut, which provides smooth engagement with the threaded shaft. Copper alloys are often used for nuts because they reduce friction and minimize wear on the screw threads.
Benefits of Stainless Steel Lead Screw
• Strong and durable construction
• Corrosion-resistant surface
• High dimensional accuracy
• Excellent wear resistance
• Long service life
Benefits of Copper Nut
• Low friction motion
• Reduced wear on threads
• Smooth mechanical operation
• Reliable long-term performance
The combination of stainless steel and copper ensures that the 500mm Trapezoidal Lead Screw 8mm 2mm Pitch operates efficiently even under demanding mechanical conditions.
4-Start Thread Design
The 4-start trapezoidal thread design is an important feature of this lead screw.
A multi-start thread means that several independent threads run along the screw simultaneously. In this case, four threads are present, which significantly improves the efficiency of the screw.
Advantages of 4-Start Lead Screw
• Faster linear movement
• Improved motion efficiency
• Reduced friction
• Better load distribution
• Increased stability in motion systems
The 500mm Trapezoidal Lead Screw 8mm 2mm Pitch provides efficient power transmission when connected to stepper motors or other motion control mechanisms.
This makes it ideal for systems where controlled movement is required over longer distances.
Precision Linear Motion
Precision is essential in machines that rely on linear motion. The 2mm pitch of this lead screw allows for accurate positioning and precise movement.
Pitch refers to the distance the nut travels along the screw during one complete rotation.
With a 2mm pitch, the system achieves controlled movement with minimal error, making the lead screw ideal for precision equipment.
Applications requiring high precision include:
• 3D printer Z-axis motion
• CNC machine positioning
• Laser engraving machines
• Robotics linear actuators
• Laboratory automation systems
The 500mm Trapezoidal Lead Screw 8mm 2mm Pitch ensures stable and repeatable motion in these systems.
Applications
The 500mm Trapezoidal Lead Screw 8mm 2mm Pitch is widely used across multiple industries and technical fields.
3D Printing
Lead screws play an important role in 3D printers, especially for vertical motion control. The screw moves the print bed or extruder assembly with high precision.
Accurate motion ensures high-quality printing results and consistent layer alignment.
CNC Machines
CNC machines rely heavily on linear motion systems. The 500mm Trapezoidal Lead Screw 8mm 2mm Pitch helps control the movement of cutting tools along precise axes.
This ensures accurate machining, drilling, and milling operations.
Robotics and Automation
In robotics systems, lead screws are commonly used for linear actuators and robotic arms. These components help convert motor rotation into controlled linear movement.
Robotic systems often require high reliability and precision, making trapezoidal lead screws a preferred choice.
DIY Engineering Projects
For DIY makers and engineering enthusiasts, the 500mm Trapezoidal Lead Screw 8mm 2mm Pitch is perfect for experimental mechanical systems.
Examples include:
• DIY CNC machines
• Homemade 3D printers
• Linear motion testing platforms
• Robotics prototypes
• Automation experiments
The screw is easy to integrate into custom designs and maker projects.
Industrial Machinery
Industrial machines use lead screws for controlled movement in many systems, including:
• Assembly machines
• Packaging machines
• Material handling systems
• Automated production lines
The 500mm Trapezoidal Lead Screw 8mm 2mm Pitch provides reliable motion control in these applications.
Smooth Motion and Low Friction
The design of the trapezoidal thread combined with the copper nut significantly reduces friction during operation.
Low friction offers several advantages:
• Smooth and quiet motion
• Reduced mechanical wear
• Higher efficiency
• Longer operational life
This ensures that machines using this lead screw can operate continuously without excessive maintenance.
Easy Installation
The 500mm Trapezoidal Lead Screw 8mm 2mm Pitch is designed for simple installation.
Because it follows standard mechanical dimensions, it can easily be connected to:
• Stepper motors
• Linear rails
• Couplers and bearings
• CNC machine frames
Engineers and hobbyists can install the lead screw quickly without requiring complex modifications.
Package Contents
When purchasing this product from LOFTY AGROTECH, the package includes:
1 × 500mm Trapezoidal Lead Screw 8mm 2mm Pitch
1 × Copper / Brass Nut
The nut is precisely matched with the screw thread to ensure smooth operation and proper alignment.

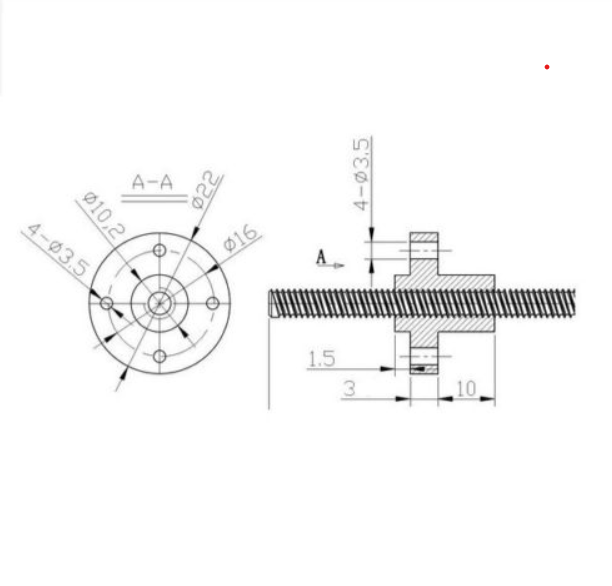

Product Specifications
| Specification | Details |
|---|---|
| Item Type | Lead Screw with Copper Nut |
| Compatibility | General Purpose |
| Lead Screw Material | Steel (304 Stainless Steel) |
| Nut Material | Copper / Brass |
| Number of Starts | 4 |
| Thread Diameter | 8 mm |
| Pitch | 2 mm |
| Length | 500 mm |
| Net Weight | 170 g |
| Shipping Weight | 0.2 kg |
| Shipping Dimensions | 53 × 3 × 3 cm |
